Bellows seal trap
The thermo-sensitive element of bellows seal traps is bellows filled with volatile liquid,which employs the volatility of the liquid and flexibility of the bellows.When temperature of the steam pipe goes up,the liquid volatilizes into gas,the size expands and produces pressure to impel bellows to stretch.In contrast,when temperature of the steam pipe goes down to the temperature for gas to turn into liquid,the size gets smaller and the bellows contract due to lack of impetus.
優點：
1、排水溫度可以調節在70~100度之間，使用方便。
2、能夠阻止高溫凝結水的排放，保持蒸汽管線的熱能。
3、連續排水，沒有噪音。
4、蒸汽壓力的小波動沒有影響使用。
5、結構簡單，體積小，安裝方便、隨意。
6、通過增加波紋管直徑提高凝結水的排量。
7、具有良好的排空氣性能，不怕凍。
8、零泄露，背壓率達到75%。
Merits
1.Convenient use due to adjustable water discharge temperature ranging from 70 to 100 degrees.
2.Capability to prevent discharge of high-temperature condensate so as to maintain heat energy of the steam pipe.
3.Continuous water discharge without noise.
4.Free from the effect of small fluctuation of steam pressure.
5.Simple structure,small size and easy installation.
6.Improvement of discharge capacity condensate by increasing diameter of bellows.
7.Good air diameter performance with resistance to coldness.
8.Zero leakage and backpressure ratio up to 75%.
安裝、使用注意事項：
安裝前管路應用蒸汽吹除污物。箭頭所示方向與流向一致。
疏水閥前熱力管應有1～2米不必保溫。應安裝在低于用汽設備凝結水排出點的地方。
該閥出廠前疏水溫度已調節在95℃左右，如果需要改變疏水溫度或排水量時，可打開防護帽，松開鎖緊螺母，旋轉調節螺釘，順時針旋轉閥芯前進，疏水量減少，疏水溫度降低；逆時針旋轉，閥芯后退，疏水量增大，疏水溫度上升。調整后，就將鎖緊螺母擰緊。
要定期保養，清除過濾網前的污物，保證疏水閥正常工作。
Installation/attention for use
Before the installment of pipeline,use the steam to blow off the pollutant.The arrow shows the direction consistent with the flow direction.
Ahead of the trap,the thermal tube of 1～2 meters need no heat-preservation.Be installed at thermal position lower than the condensation water discharge point of the steam-using equipment.
Before leaving the plant,the hydrophobic temperature of trap has been adjust around 95℃.If it is needed to change the hydrophobic temperature or the displacement,open the shielding bonnet,loosen the lock nut,revolve the adjusting screw revolve the valve core clockwise,the hydrophobic volume reduces and the hydrophobic temperature drops;revolve it counterclockwise,the valve core backlashes,the hydrophobic volume increases,and the hydrophobic temperature rises.After the adjustment ended,tighten the lock nut.
It is needed to make the periodic maintenance and clear the pollutant before the filtration screen,so as to guarantee the trap work normally.
波紋管式疏水閥/BELLOWS SEAL TRAP
技術參數/Technique parameter
|
殼體壓力等級 Shell pressure grade |
最大工作壓差 Maximum Operating pressure differential |
最高允許溫度 Maximum Allowable temperature |
允許背壓率 Permitted Backpressure rate |
|
|
1.6、2.5MPA |
1.6MPA |
350℃ |
75% |
|
|
抗凍性 Freezing resistance |
排空氣裝置 Air exhaust system |
使用介質 Used medium |
節能效果 Energy saving effect |
負荷泄漏率 Load leakage |
|
優秀 Excellence |
自動 Automatic |
蒸汽、凝結水 Steam、 condensate water |
優秀 Excellence |
0% |
主要零件材料/The materials of primary accessories
|
零部件名稱 Part and component name |
材質 Material |
|
閥體、閥蓋 Valve Body、Valve Cover |
碳鋼、不銹鋼 Carbon steel、Stainless steel |
|
液囊 Reservoir |
不銹鋼和易揮發液體 Stainless steel、Volatile liquid |
|
閥座 Valve seat |
高鉻不銹鋼、四氟 High chrome stainless steel、Four Fluorine |
|
過濾網 Filtrating screen |
不銹鋼 Stainless steel |

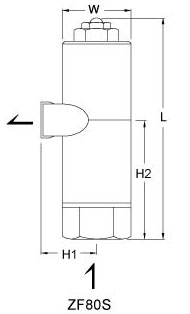

外形尺寸和重量/Prime out-form dimensions and weigh
|
產品型號 Product model |
口徑(DN) Calibre |
L法蘭 Flange |
L螺紋/ 焊接 Thread/ welding |
H1 |
H2 |
W |
重量(kg) weight |
使用壓力 范圍(MPa) Pressure Change range |
公稱壓力 (MPa) Nominal pressure |
|
ZF80S-2 CS14F-16 |
15~25 32-50 |
- |
136 175 |
37 55 |
67 100 |
40 74 |
1.2 2.3 |
0.1-1.6 |
2.5 |
注解
1、選型時請提供工作壓力、工作壓差、凝結水發生量、工作溫度、連接方式及標準。2、凝結水負荷的安全系數一般為2～3倍。
3、正確安裝、定期保養清除閥內污物，保證疏水閥正常工作和延長使用壽命。
Note
1.Please provide operating pressure and operating pressure difference,generating quantity of condensate water,operating temperature,connecting mode and standards in selecting product models.
2.The load of condensate Water's safety coefficient reaches 2 to 3 times in general.
3.Please make sure the drain valve is installed properly,maintained regularly,cleaned up and operates under the normal condition,so as to extend its service life.
